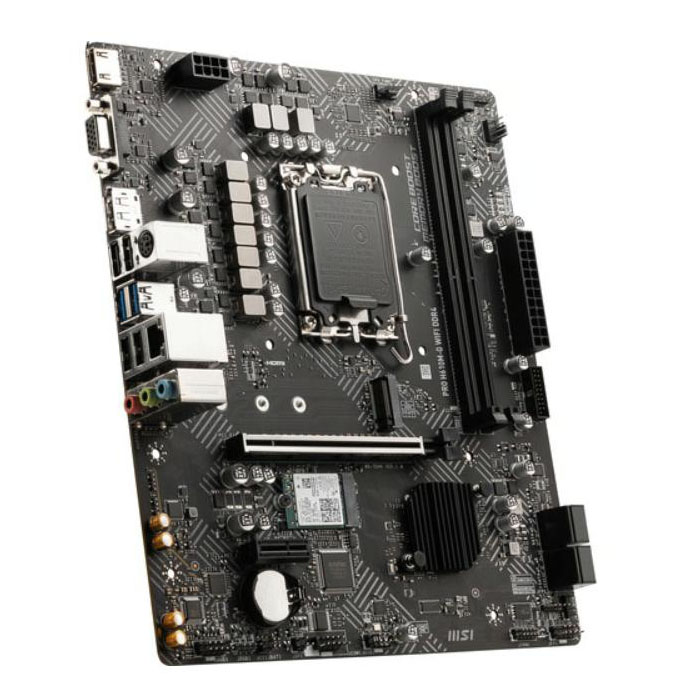

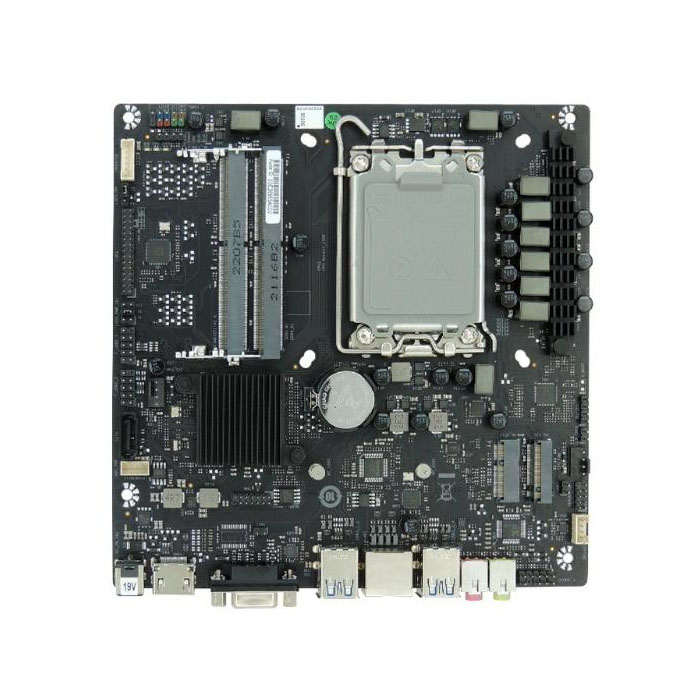

X86 motherboard-INTEL H610 Board

YCTECH industrial product control board development includes industrial control board software design, software upgrade, schematic diagram design, PCB design, PCB production and PCBA processing located in the east coast of China. Our company designs, develops and manufactures X86 motherboard-INTEL H610 board. Intel® Socket LGA1700 for 12th 13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

*CPU only support up to 65W

*Refer to www.asus.com for CPU support list.

**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

chipset

Intel® H610 Chipset

Memory

2 x SO-DIMM, Max. 64GB, DDR4 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

*Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

graphics card

1 x DisplayPort**

1 x HDMI® port***

1 x LVDS connector

*Graphics specifications may vary between CPU types.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

storage device interface

Total supports 1 x M.2 slot and 2 x SATA 6Gb/s ports

Intel® 12th Gen Processors

- 1 x M.2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Intel® H610 Chipset

- 2 x SATA 6.0 Gb/s ports

Internet function

1 x Realtek 1Gb Ethernet

ASUS LANGuard

USB interface

Rear USB (Total 4 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 2.0 ports

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x USB 2.0 header supports additional 1 USB 2.0 port

sound effects

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback "

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Rear panel I/O device connectors

2 x USB 3.2 Gen 2 ports

2 x USB 2.0 ports

1 x DisplayPort

1 x HDMI® port

1 x Realtek 1Gb Ethernet port

2 x Audio jacks

1 x DC Power Connector (Support 19V)

Built-in I/O device interface

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 2-pin +19V Power connector

1 x SATA power connector

Storage related

1 x M.2 slot (Key M)

2 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header supports additional 4 USB 2.0 ports

1 x USB 2.0 header supports additional 1 USB 2.0 ports

AIO System related

1 x 2-pin internal DC power connector

1 x Stereo speaker connector

1 x DMIC header

Flat panel display related

1 x Backlight inverter voltage selection header

1 x FPD brightness header

1 x Panel voltage selection header

1 x Panel off header

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

1 x COM Port header

1 x COM debug header

1 x Front Panel Audio header (AAFP)

1 x LVDS connector

1 x M.2 slot (Key E)

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

BIOS function

128 Mb Flash ROM, UEFI AMI BIOS

management function

WOL by PME, PXE

Package Contents

Cables

2 x SATA 6Gb/s cables

1 x SATA power cable

Miscellaneous

2 x I/O Shields

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User guide

Supported OS

Windows® 11 64-bit, Windows® 10 64-bit

motherboard size

Thin Mini-ITX Form Factor

6.7” x 6.7” (17.0cm x 17.0cm)
