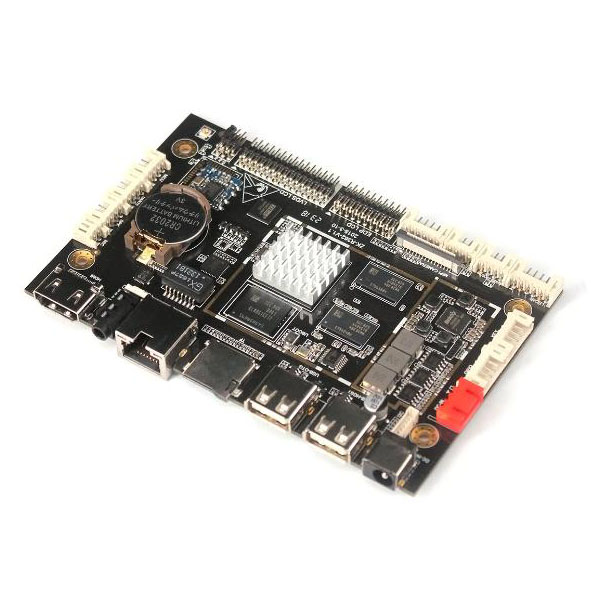

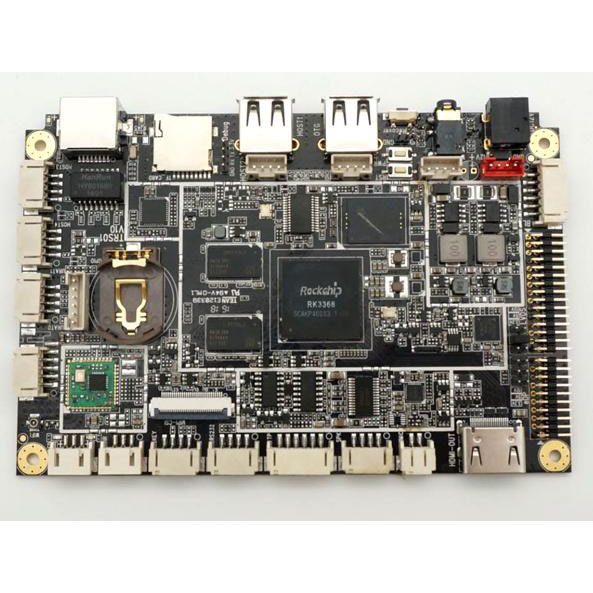

RK3368 SOC Embedded Board

YCTECH industrial product control board development includes industrial control board software design, software upgrade, schematic diagram design, PCB design, PCB production and PCBA processing located in the east coast of China. Our company designs, develops and manufactures RK3368 SOC Embedded board. RK3368

Octa-core Cortex-A53 up to 1.5GHz

PowerVR G6110 GPU

DDR3/DDR3L/LPDDR2/LPDDR3

4K UHD H265/H264

BT.2020/BT.709

H264 encoder

TS in/CSA 2.0

USB 2.0

HDMI 2.0 with HDCP 2.2

MIPI/eDP/LVDS/RGMII

TrustZone/TEE/DRM

SPECIFICATIONS

Process • 28nm

CPU • Octa-Core 64bit Cortex-A53,up to 1.5GHz

GPU • PowerVR G6110 GPU

• Support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3

• High performance dedicated 2D processor

Multi-Media • 4K H265 60fps/H264 25fps video decoders

• 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

• 1080P video encoder for H.264 and VP8

Display • Support RGB/LVDS/MIPI-DSI/eDP interface, up to 2048x1536 resolution

• HDMI 2.0 for 4K@60Hz with HDCP 1.4/2.2

Security • ARM TrustZone (TEE), Secure Video Path, Cipher Engine, Secure boot

Memory • 32bit DDR3-1600/DDR3L-1600/LPDDR3-1333

• Support MLC NAND, eMMC 4.51, Serial SPI Flash booting

Connectivity • Embedded 8M ISP, MIPI CSI-2 and DVP interface

• Dual SDIO 3.0 interface

• TS in/CSA2.0 ,support DTV function

• Embed HDMI、Ethernet MAC 、S/PDIF、USB,I2C,I2S ,UART,SPI

Package • BGA453 19X19, 0.8mm pitch
